UB500C is a highly versatile walkthrough metal detector, with 12 zone and adjustable sensitivity making it widely used in airports, stations, shopping malls, and other security inspection places. this product. The detection structure uses electromagnetic field to detect the metal objects in the body. It consists of a host, a high-frequency signal generator, a signal receiver, and an infrared sensor. It uses sound and light to alarm indicate that the metal objects in the body exceed a certain amount. It is used for security inspection. It can speed up the detection efficiency during the project.
The UM-600’s Access Control Panel is designed for use by authorized personnel with specific, multi-level security with password protection, only the authorized person can operate. Sound & LED alarm: Both Side LED indicators, easily show where the metal is, Automatically count passengers and alarm times.
-
-
-
-
-
- Sound & LED alarm: Two Sides LED indicator easily shows where the metal is；5-digits counter: Automatically count passengers and alarm times
- Anti-interference function, using advanced interactive transmitting and receiving to avoid interference.
- Sensitivity Test piece: One yuan Coin, omnidirectional detection
- Password protection, only the authorized person can operate； Waterproof can be used outdoor
- Using waterproof PVC material
- PVC door panels, LED on the top unit
- Sensitivity adjustable: Each zone has 2000 sensitivity level

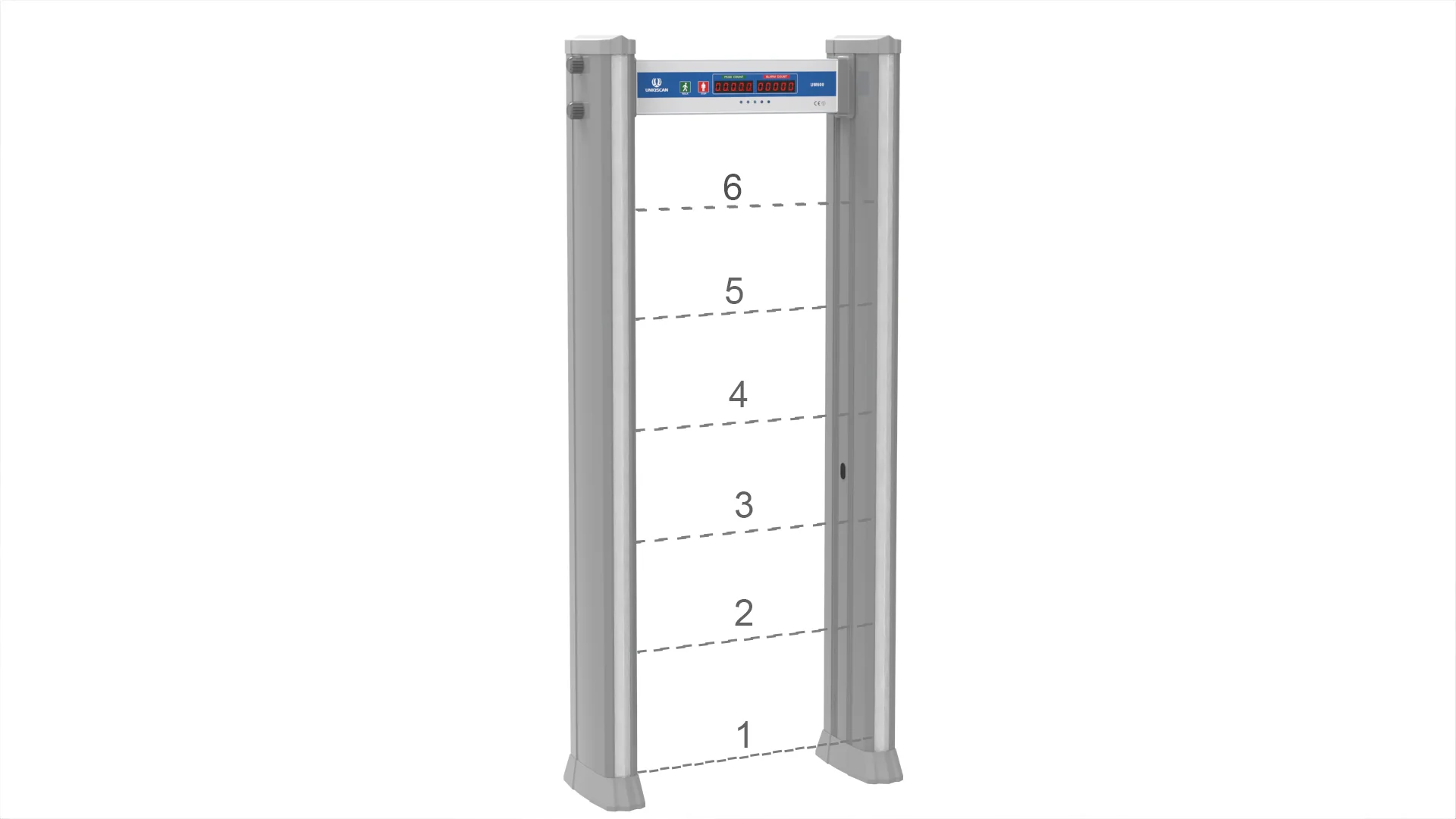

- 6 detecting zones, Simultaneous alarm from multi-zones
- Easy assembly: portable design, only 4 screws, Simply follow instructions.
- Harmless to the human body: is harmless with heart pacemakers, pregnant women, magnetic floppy, recording tapes, etc.
- Program Self-diagnostic when power on, no need for initial or periodic calibration；
- Modularization design is easy for maintenance and replacement.
-
-
-
-
We own all of the intellectual property rights (IPR) to its core technologies and have an experienced engineering team. Our excellent technical development capacity supports us are able to have continuously new production lines. The Uniqscan metal detector is a leader in global safe drilling and handheld metal detection products and training. From the Olympics to international airports around the world, Uniqscan has reliable experience, expertise, and reliable products to make your facilities or events safer.
TRUE QUALITY
SAFE & HARMLESS
CERTIFICATIONS
SCOPE OF APPLICATION
Technical Data :
| FUNCTION PARAMETER | |
| Detection Zones | 18 zone |
| Multi-Unit Synchronization | Manual |
| Visual Displays | Digital tube display |
| Access Control | Button |
| Control Outputs | Alarm area indicator and buzzer |
| Sensitivity | Each zone 0-999, 1000 levels adjustable |
| Frequency | 4K-8KHz continuously adjustable |
| Smallest detectable unit | one yuan coin |
| Infrared beam mode | One-way, two-way, can be closed |
| Remote Control | No remote control |
| Infrared passing speed | 60/min |
| Environmental Signal Interference Detection | Yes |
| ELECTRICAL PARAMETERS | |
| Power | AC110V（220V）/60HZ（50HZ） |
| Working current | 1A |
| Power consumption | <12W |
| USE ENVIRONMENT | |
| Protection class | IP65 |
| Use environment | Outdoor |
| Operating Temperatures | -20℃～45℃ |
| Working humidity | 0-0.95,no condensation |
| MATERIAL | |
| Construction | UPVC+PC |
| Cable connector | DB15 |
| Installation method | Vertical installation |
Packaging and Shipping
| SIZE PARAMETERS | |
| Chassis size | 705(H)*195(W)*105(D)mm |
| Door size | 2205(H)*360(W)*110(D)mm |
| Passageway Interior Size | 2000(H)*705(W)*300(D)mm |
| Overall Exterior Size | 2200(H)*820(W)*450(D)mm |
| Shipping Size | 2280(H)*485(W)*320(D)mm (Door panel) 725(H)*225(W)*120(D)mm(Control unit ) |
| Product Weight | 57kg |
| Shipping Weight | 68kg |
| Carton Dimension | L*W*H (mm) |
| Door Panel | 2280(H)*485(W)*320(D)mm |
| Control Unit | 725(H)*225(W)*120(D)mm |
Accessories
Details:
- A. 5 Digital LED Count: Easy show & count passengers;
- B. 8 Screws: Easy assembly and installation;
- C. Socket: Easy connect both door panels;
- D. Power Line： Support UK / European / USA standards;
- E. Integrated Circuit Board： Intelligent circuit;
- F. Infrared Sensor: Accuracy check;
- G. Tamper Indication: Easily distinguish interference;
- H. Foot Cover: Easy fastness ;
